OPC Explorer

Use Integrat Objects’ OPC Explorer to monitor OPC DA, OPC HDA and OPC AE data

Integration Objects’ OPC Explorer is a plug-and-play OPC client software tool that enables you to visualize and monitor real-time and historical process data, as well as alarms and events that are accumulated during your daily plant operations.

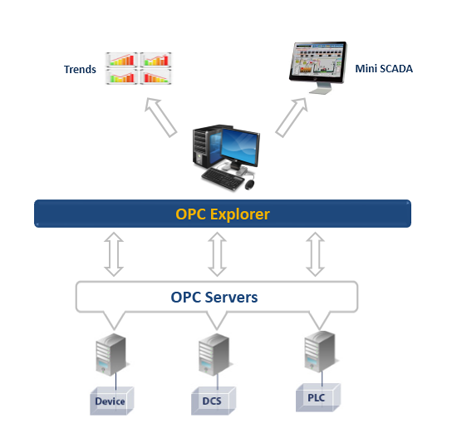

OPC Explorer is a comprehensive OPC client application. It allows you to collect data and receive alarm notifications from a hybrid environment including but not limited to PLCs, DCS, SCADA systems, and real-time database historians.
Plant operation personnel can use OPC Explorer to monitor process data from their control systems and benefit from a powerful event notification tool to receive key critical events via emails, based on predefined conditions.

OPC Explorer

Product Features

  • A fully compliant OPC DA, HDA, A&E Client
  • OPC DA synchronous and asynchronous reads and writes
  • OPC HDA synchronous and asynchronous reads and updates, with playbacks and annotations' support
  • OPC Alarms and Events notifications, visualization, grouping, sub-grouping, and acknowledgment
  • Trend analysis for real-time and historical data
  • MDI (Multi-Document Interface) support for multi-connection handling and multi-data view capabilities
  • Sophisticated graphical user interface- simple and easy to use with the ability to customize colors, fonts and styles
  • Mini SCADA capabilities : Build your process map and supervise your process data in a more meaningful and friendly environment
  • Automatic reconnection to OPC servers when the connection is lost
  • Alarm manager features for real time and historical data
  • Creation and monitoring of historical alarms & events views
  • Windows service capabilities
  • OPC server redundancy
  • Log event display

Operating System Compatibility

  • Windows XP
  • Windows Seven
  • Windows Server 2003
  • Windows Server 2008
  • Windows 8
  • Windows Server 2012

OPC Compatibility

  • OPC Data Access 1.0a
  • OPC Data Access 2.00
  • OPC Data Access 2.05a
  • OPC Data Access 3.00
  • OPC Historical Data Access 1.00
  • OPC Historical Data Access 1.10
  • OPC Historical Data Access 1.20
  • OPC Alarms and Events 1.00
  • OPC Alarms and Events 1.02
  • OPC Alarms and Events 1.10
