Download the OPC Logger for CSV and save your OPC data into CSV files

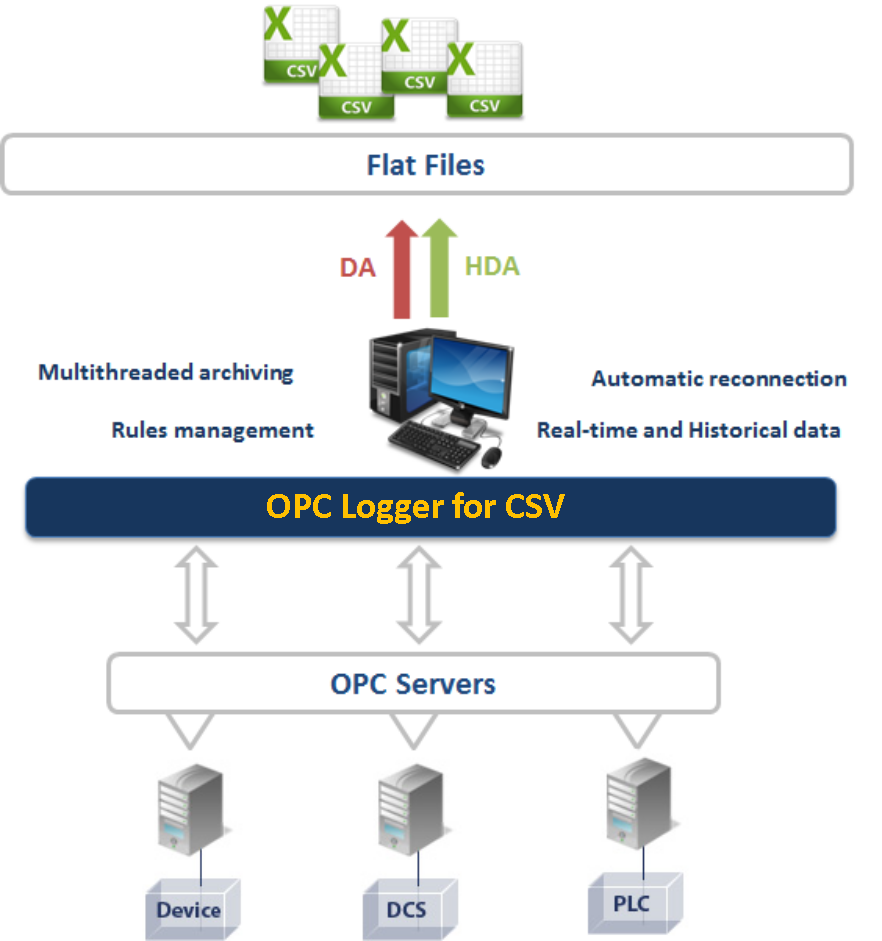

The OPC Logger for CSV is a feature component of OPC Easy Archiver. It provides users with an easy way to connect to one or more OPC DA and OPC HDA servers, to pull real-time and historical data, and to save the OPC data into CSV flat files.

This OPC archiver product enables users to archive the data they require at a suitable frequency within few clicks. Output CSV files can later be useful for data simulation and data analysis needs.

opc-product

Product Features

  • Fully compliant OPC DA & HDA client
  • Browsing all local or remote OPC DA & HDA servers connected to the network
  • Connection to one or more local and remote OPC DA & HDA servers at the same time
  • Browsing any OPC DA & HDA server address space
  • OPC DA synchronous and asynchronous group reads as well as report by exception (data changes)
  • OPC DA synchronous and asynchronous data writes
  • OPC HDA synchronous/asynchronous reads and updates, with annotations' support. A Loop manager is also available to allow you to schedule and automatically send synchronous and asynchronous requests.
  • Archiving OPC data into CSV files and automatic creation of CSV files on configurable periodicity
  • Automatic reconnection to OPC servers when the connection is lost
  • Rule management functionalities
  • Windows service capability
  • Log event display and archiving

Operating System Compatibility

Windows XP SP3

Windows 7

Windows 8

Windows 10

Windows Server 2003 SP2

Windows Server 2008

Windows Server 2012

Windows Server 2016

Windows Server 2008 R2

Windows Server 2012 R2

Windows Server 2019

OPC Compatibility

  • OPC Data Access 3.00
  • OPC Data Access 2.05
  • OPC Data Access 2.00
  • OPC Data Access 1.0
  • OPC Historical Data Access 1.10
  • OPC Historical Data Access 1.20
