OPC Server for Modbus Overview

Why Use a Modbus OPC Server?

  • Connects Modbus TCP and Modbus Serial devices to OPC DA clients through one server
  • Mixes TCP and Serial devices in the same server instance
  • Reads coils, discrete inputs, holding registers and input registers as OPC tags
  • Serves HMI, SCADA, historians and MES over OPC DA
  • Runs as a Windows service

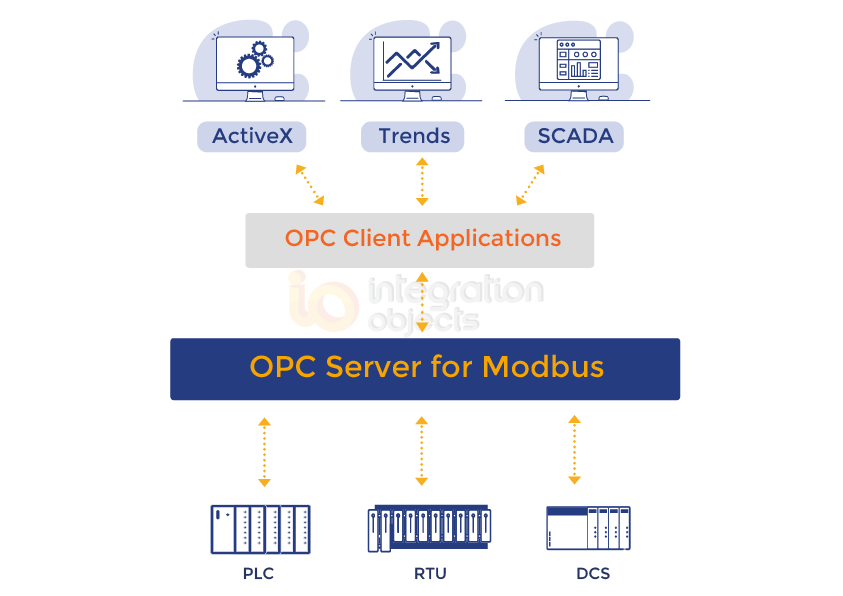

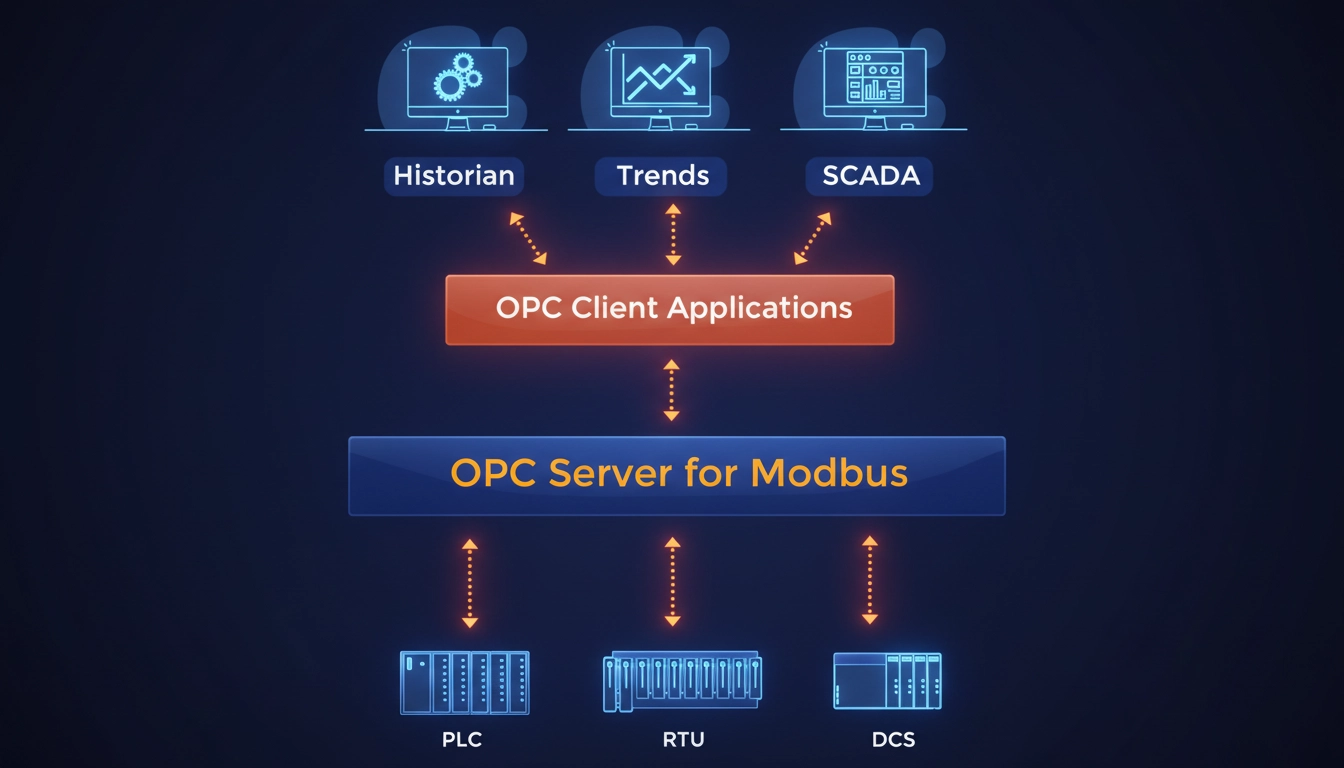

OPC Server for Modbus architecture diagram: Modbus RTU, DCS, and PLC devices connected via OPC

OPC Server for Modbus Features

Modbus TCP and Serial Connectivity

  • Dual Protocol Support: Complete Modbus TCP and Modbus Serial  compatibility
  • Multi-Device Connectivity: Connect multiple Modbus devices simultaneously through a single server instance
  • Device Compatibility: Support for PLCs, RTUs, DCS systems, sensors, and other Modbus-enabled equipment
  • Network Interface Selection: Select the network interface used for Modbus TCP communications or use the default Windows network route, providing flexibility in multi-network environments.

Real-Time Data Management

  • Real-Time Polling: Continuous polling of connected Modbus devices with live OPC tag updates
  • Block Polling: Tags configured per register block to reduce the number of Modbus requests
  • Modbus Data Tables: Coils, discrete inputs, holding registers and input registers
  • Register Mapping: Flexible register addressing and data type conversion capabilities

Data Acquisition & Communication Optimization

  • Automatic Modbus Block Splitting: Automatically subdivide Modbus read blocks when an Illegal Data Address exception is encountered, isolating invalid address ranges and allowing valid addresses to continue being acquired. This enhances communication resilience and improves data acquisition reliability.

Data Formatting & Scaling

  • Linear and Square Root Scaling: Convert raw Modbus device values into engineering units or application-specific ranges using Linear or Square Root scaling methods, with the option to disable scaling when raw values are required.

Configuration & Management

  • Configuration Wizard: Set up devices, connections and OPC tags without scripting
  • Tag Management: Easy OPC tag creation, editing, and organization
  • Connection Monitoring: Real-time connection status and device health monitoring
  • Zero-based and one-based addressing
  • Byte and word order swapping
  • Modicon bit ordering
  • Automatic reconnection after network interruptions
  • Event logging with log viewer

OPC DA Compatibility

  • OPC DA Support: Support of OPC Data Access 2.05 and 3.0 specifications
  • Client Compatibility: Integration with HMI, SCADA, historians and MES over OPC DA
Frequently Asked Questions

The OPC Server for Modbus supports any device compliant with Modbus TCP or Modbus Serial  standards, including PLCs from major manufacturers (Schneider, Siemens, Allen-Bradley), RTUs, DCS systems, power meters, and industrial sensors.

Yes, the server supports simultaneous connections to both Modbus TCP (Ethernet) and Modbus Serial devices, allowing you to integrate mixed Modbus environments through a single OPC interface.

The server supports unlimited device connections, with performance depending on polling rates, network capacity, and system resources. Typical installations handle 50-200 devices efficiently.

We offer a special free license for up to 50 tags for both Modbus TCP and Serial connections. Support fees are charged separately to benefit from this special offer. This is ideal for small applications .

A 30-day trial license is also provided for free for test and evaluation purposes.

Modbus is a device communication protocol used by PLCs, RTUs and meters. OPC DA is a standard interface that HMI, SCADA and historian software use to read data. The OPC Server for Modbus translates between the two, so OPC clients can read Modbus devices without device-specific drivers.

It exposes data over OPC DA. For OPC UA clients, pair it with the OPC UA Wrapper, or use SIOTH® Data Flow, which connects Modbus TCP and RTU devices to the OPC UA Universal Server.
